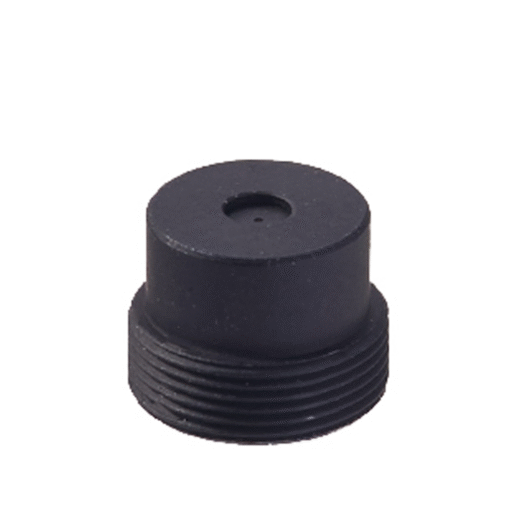

12MP 8mm 1/1.7″ f5.6 M12 Mount Machine Vision High Resolution Industrial Camera Lenses
- Low Distortion Lens for up to 1/1.7″ sensor
- M12xP0.5 Mount Lens
- 8mm Focal Length
- 60.32 Degrees FoV
$19.00
12MP 8mm 1/1.7″ f5.6 M12 Mount Machine Vision High Resolution Industrial Camera Lenses
Product Description
| Model | CH3677A | Chief Ray Angle | <18° |
| Resolution | 12MP | M.O.D | 0.1m~∞ |
| Image Format | 1/1.7″ | Mount Type | M12*P0.5 |
| Image Circle | ф8.0mm(MAX) | Dimension Figure | ф18.0*L22.40mm |
| EFL | 8.0mm | Lens Structure | 10G |
| TTL | 28.0mm | IR-Filter | Optional |
| F/NO. | F5.6 | Waterproof | No |
| FFL（M) | 6.37mm | Weight | / |
| BFL（O) | 7.80mm | Iris Operation | Fixed |
| For Sensor | 1/1.7″ | Zoom Operation | Fixed |
| F.O.V（H*V*D） | 49.31°*37.98°*60.32° | Focus Operation | Manual |
| TV Distortion | <-0.37% | Operating Temperature | -20° ~+85° |
| Relative Ill. | >74.7% | Storage Temperature | -20° ~+85° |
Filter Options：
IRCUT650nm, BP850nm, BP940nm, Visible+BP850nm, Visible+BP940nm.
(Please simply leave a note when placing your order)
If you request a special/custom filter, kindly contact us for further information.
Payment
Payment can be made by the following methods: credit card and PayPal.
We will debit the payment from your chosen method of payment at the time we receive your order, and have checked your account details.
No payment shall be deemed received until we have received cleared funds. In the event that we dispatch goods to you before receiving payment, title in those goods shall be retained by us until we receive full payment in cleared funds from you.
Delivery
How long it will take for shipping?
DHL Express (recommended): $45/Order. It takes 3-5 workdays usually from China to your destination.
Yun Express: Free shipping for order over $50. It takes 7-15 days usually from China to your destination.
All Products are shipped under FOB or EXW terms, unless otherwise specified.
When will you ship my order out?
Estimated delivery time: 3-5 workdays.
Delivery delays can occasionally occur.
ChuangAn Optics is not responsible for any customs and taxes applied to your order. All fees imposed during or after shipping are the responsibility of the customer.
About US
Founded in 2010, Fuzhou ChuangAn Optics is a leading company in manufacturing innovative and superior products for the vision world, such as CCTV lens, fisheye lens, sports camera lens, non distortion lens, automotive lens, machine vision lens, etc., also providing customized service and solutions. Keep innovation and creativity is our development concepts. Researching members at our company has been striving for developing the new products with over years of technical know-how, along with the strict quality management.We strive to achieve win-win strategy for our customers and end-users.
Inspection workshop
Production workshop
Why Choose Us
We are specialized in R&D and design for 10 years.We have independently developed and designed more than 500 kinds of optical lenses.Our products are exported to more than 50 countries and regions.
| Sensor Format | 1/1.6", 1/3.8", 1/7.5", /, 1.1", 1", 3/4", 2/3", 1/1.7", 1/1.8", 1/2", 1/2.3", 1/2.5", 1/2.7", 1/2.8", 1/2.9", 1/3", 1/3.1", 1/3.2", 1/3.6", 1/3.7", 1/4", 1/5", 1/9", 1/6.5", 1/7", APS-C, Full Frame, 1/6" |
|---|---|
| Focal Length | 8mm |
| F.O.V | 49.31°*37.98°*60.32° |
| Aperture | F5.6 |
| Mount | M12x0.5 |
| Filter | NO IR Filter, IR650nm, BP850nm, BP940nm, IR650nm-850nm/DN, IR650nm-940nm/DN |
